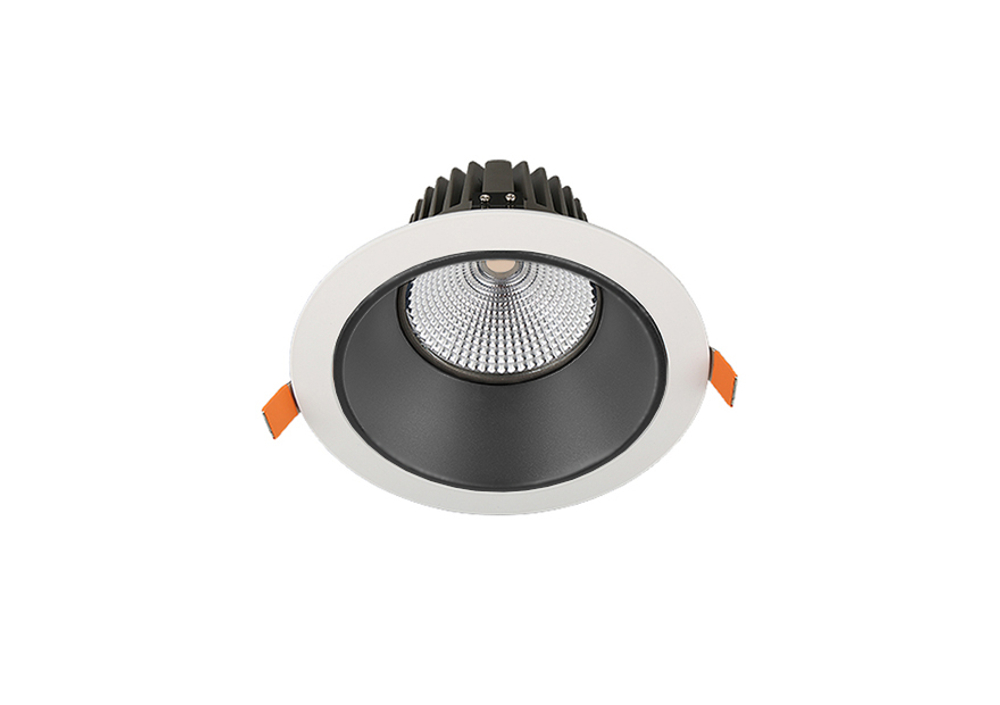

Triton MKII LED

Downlight Luminaires

Description

For spaces needing discreet downlighting, our Triton MKII LED delivers outstanding performance with a refined, decorative design. Featuring a recessed LED COB for superior glare control, it combines functionality with elegance. An IP54 rating is standard, ensuring durability and reliability.

Body

Constructed from durable die-cast aluminium and featuring a high-performance SLM heat sink, this fixture is designed to maximize longevity and maintain optimal lumen output, ensuring efficient and long-lasting illumination. With an IP54 rating, it offers reliable protection against dust and moisture, making it ideal for various indoor applications.

Application

Offices
Receptions
Circulation Areas
Toilets

Attachments

Bezel Available in Any RAL Colour
Black Reflector
IP65 Version

Sizes

Diameter: 110/190/230 mm
Depth: 100/127/140 mm
Cutout: 95/165/205 mm

Control Gear

Tridonic/OSRAM

Standard LED
DALI Dimming LED
WI-FI

Catalogue Codes

Wattage	Luminous Flux	LL/CW	Diameter	Depth	Product Code
6.9 W	1054 lm	152.8 lm/W	110 mm	100 mm	SGL/LED/110/1210/TRI/MKII
8.7 W	1316 lm	151.3 lm/W	110 mm	100 mm	SGL/LED/110/1510/TRI/MKII
10.5 W	1577 lm	150.2 lm/W	110 mm	100 mm	SGL/LED/110/1810/TRI/MKII

12.3 W	1848 lm	150.2 lm/W	190 mm	127 mm	SGL/LED/190/2120/TRI/MKII
14.2 W	2109 lm	148.5 lm/W	190 mm	127 mm	SGL/LED/190/2420/TRI/MKII
16.0 W	2371 lm	148.2 lm/W	190 mm	127 mm	SGL/LED/190/2720/TRI/MKII

17.8 W	2633 lm	147.9 lm/W	230 mm	140 mm	SGL/LED/230/3020/TRI/MKII
19.6 W	2895 lm	147.7 lm/W	230 mm	140 mm	SGL/LED/230/3320/TRI/MKII
21.6 W	3156 lm	146.1 lm/W	230 mm	140 mm	SGL/LED/230/3620/TRI/MKII
